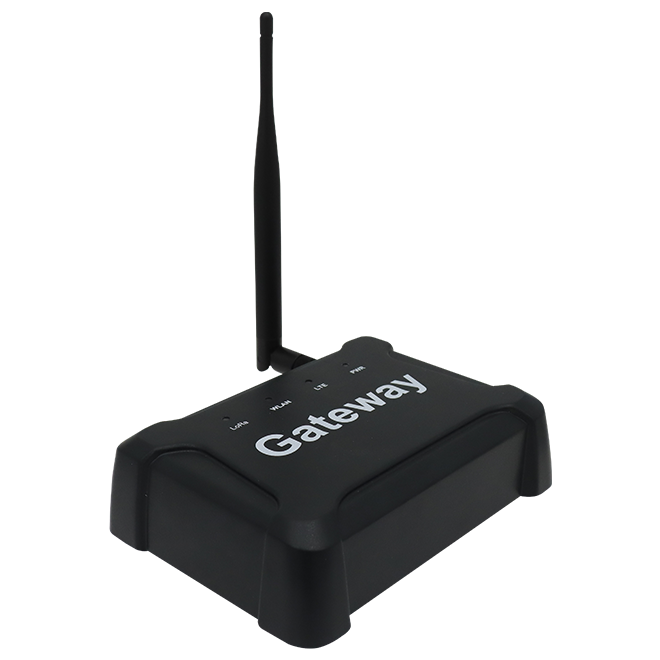

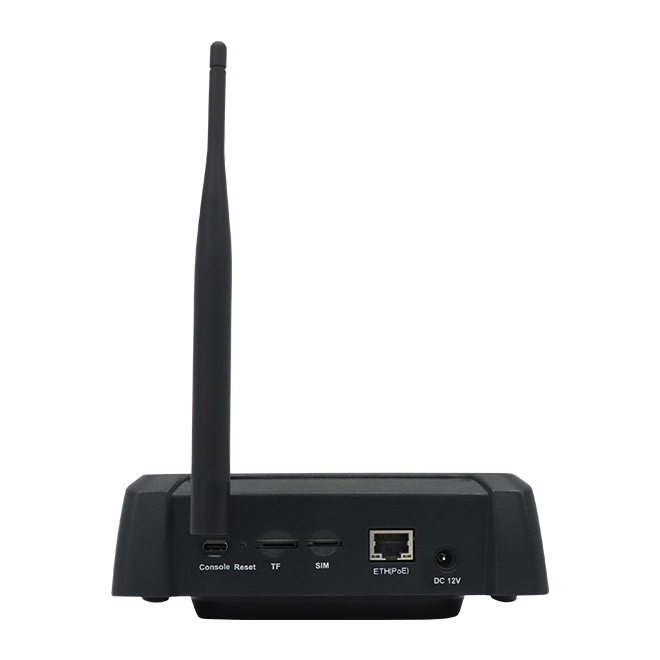

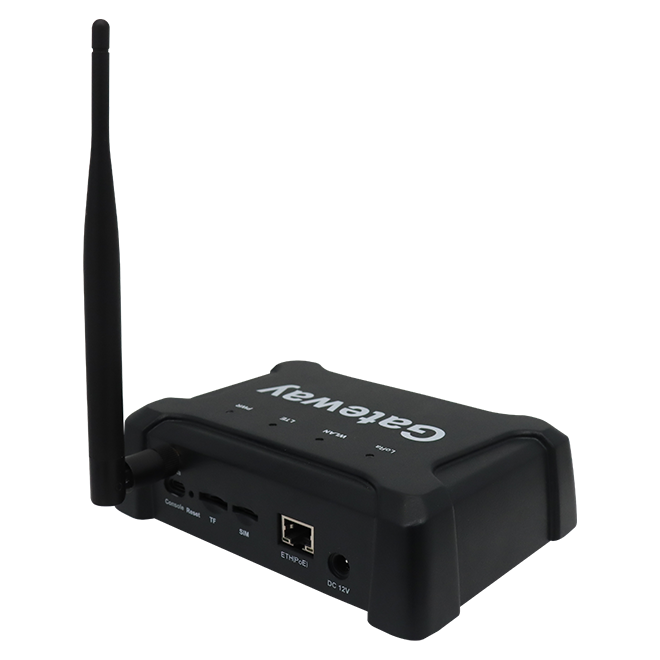

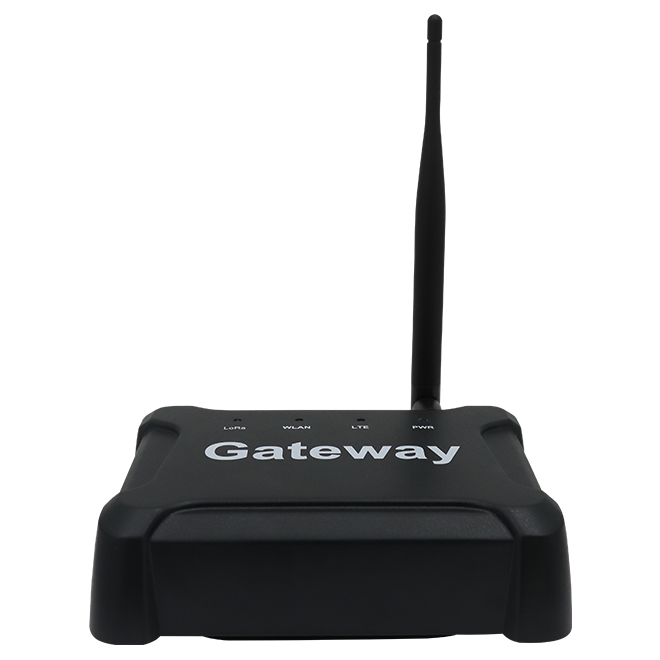

LoRaWAN Gateway E316

E316 is an indoor LoRaWAN gateway that can be used in various LoRaWAN application scenarios such as smart buildings, environmental monitoring, smart factories, smart homes, etc. It has the characteristics of wide coverage and strong signal output capability.

The gateway has built-in Ethernet and WiFi connections, making configuration and operation simple. It supports PoE power supply, which is convenient for use in application scenarios where it is difficult to install power cords on walls or ceilings. In addition, the gateway also supports LTE uplink communication connections and connections to a variety of mainstream LoRaWAN server platforms, such as The Things Network (TTN), ChirpStack, AWS, etc., to facilitate user standardized platform docking and application service development.
Message
Details

Functional Characteristics


 Support Wi-Fi AP mode configuration

 Support Ethernet PoE power supply


Support LTE Cat 4 network connection

Support the latest OpenWRT kernel

 Support access to multiple network server platforms

Specifications

Feature

Specifications

Processor

MT7628,DDR2 RAM 128 MB

WiFi Characteristics

Frequency: 2.4 GHz (802.11b/g/n)

RX Sensitivity: -95 dBm (Min)

TX Power: 20 dBm (Max)

Operating Channel: 1~13

LoRa Features

Chip: Semtech sx1302+2 X sx1250

Number of Channels: 8

Receiving Sensitivity: -139dBm @125KHz/SF12
TX Power: 27 dBm (Max)
Frequency:EU433/CN470/EU868/US915/AS923/AU915/IN865/ KR920/RU864
Mobile Cellular Network

Support Quectel EG95-E/EG95-NA/EC200M-CN

EG95-E is suitable for Europe, the Middle East and Africa

-LTE FDD: B1/B3/B7/B8/B20/B28A

-WCDMA: B1/B8

-GSM/EDGE: B3/B8

EG95-NA is suitable for North America

-LTE FDD: B2/B4/B5/B12/B13

-WCDMA: B2/B4/B5

EC200M-CN is suitable for China

-LTE-FDD: B1/B3/B5/B8

-LTE-TDD: B34/B38/B39/B40/B41
Power Supply

12V DC

PoE (IEEE 802.3 af), 40~57 V DC
Ethernet RJ45 (10M/100M)
LoRaWAN Working ModeSupports Class A/C
Console InterfaceUSB Type-C
Antenna Interface
LoRa : RP-SMA Female Connector
LTE:Internal Antenna
Wi-Fi:Internal Antenna
LEDs
Power LED
LoRa LED
WiFi LED
LTE LED
Operating Temperature-40 ~+85℃
Operating Humidity10~90%RH
Storage Temperature -40 ~+85℃
Dimensions159.5×120×45 mm
MaterialPlastic
Weight0.35Kg

Working Conditions

Working Voltage

3.3V

Working Temperature

-40 ~+85℃

Working Humidity

10~90%RH

Storage Temperature-40 ~+85℃


Application


UtilitiesSmart Industry
Smart AgricultureAsset Tracking
