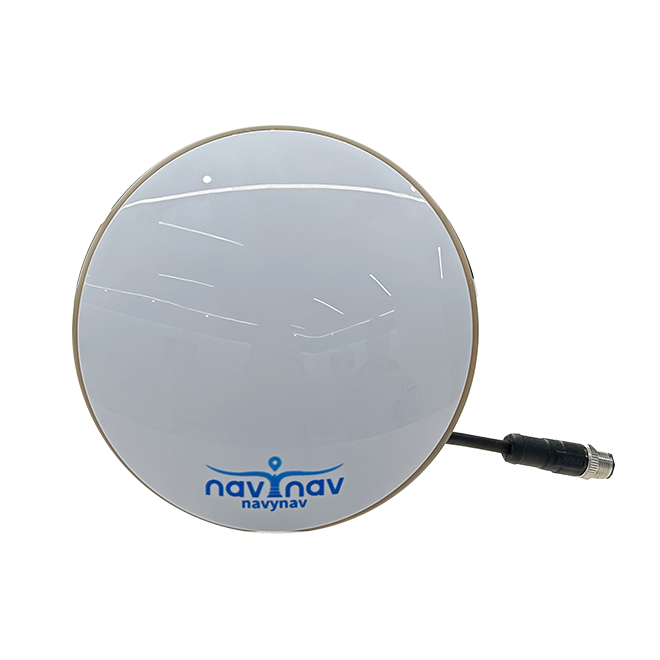

High precision GNSS module and antenna
SLIDETM smooth positioning technology for stable positioning output
Terrain compensation algorithm maximums positioning accuracy
Wireless Bluetooth technology for easy connectivity
Rugged housing, flexible installation options, IP67 rating waterproof
| Feature | Specifications |
|---|---|
| BDS | B1I |
| GPS | L1 C/A |
| GLONASS | L10F |
| GALILEO | E1 B/C |
| QZSS | L1 C/A/S |
| SBAS | L1 C/A |
| Single point | 1.5m CEP |
| PASS TO PASS | 45cm |
| Output Frequency | 10 Hz |
| Time to First Fix | Cold Start < 50s |
| Dimensions | φ152xH57.7mm |
| Weight | <500g |
| Connector | M12 8PIN Connector |
| Mounting | 3*M5 Screws Mount Magnetic Mount BSW5/8''-11 Screw Mount |
| Accessories | Data Cable*1pc (Alternative) |
| Input Voltage Range | +9VDC ~ +36VDC |
| Power Consumption | 2.5W (Typical) |
| Status LEDs | Power RTK Status |
| Operating | -40℃～+70℃ |
| Storage | -40℃～+75℃ |
| Humidity | 95% non-condensing |
| Vibration | GJB150.16-2009 |
| Waterproof Rating | IP67 |
| Applications |
 |
| Smart Agriculture |
