Supports simultaneous tracking of L1CA and B1 signals
Short time to first heading fix
Integrated inclinometer module
Unique temperature compensation algorithm ensures accurate tilt
measurements across the full temperature range
General Specification | |
Horizontal Positioning Accuracy | 5m (RMS) |
Vertical Positioning Accuracy | 10m (RMS) 5m (RMS), after 12 hours in an open, undisturbed environment |
| Heading Accuracy | 5° (2RMS) |
| Inclination Accuracy | ±1.0°, range -90°~90° |
| Positioning Initialization Time | 60s |
| Heading Initialization Time | 180s (2RMS) |
| Supply Voltage | DC 8.5V ~ 30V |
| Ripple | 100mVpp(MAX) |
| Power Consumption | ≤1W (Typical) |
| IP Rating | IP65 |
| Surge Immunity | IEC 61000-4-5:2005 IEC |
| Lightning Test | GB/T 3482 Impulse Current 8/20 μs, 3kA (Common Mode), 5kA (Differential Mode) |
| Weight | ＜700g |
| Operating Temperature | -40~+75℃ |
 |  |

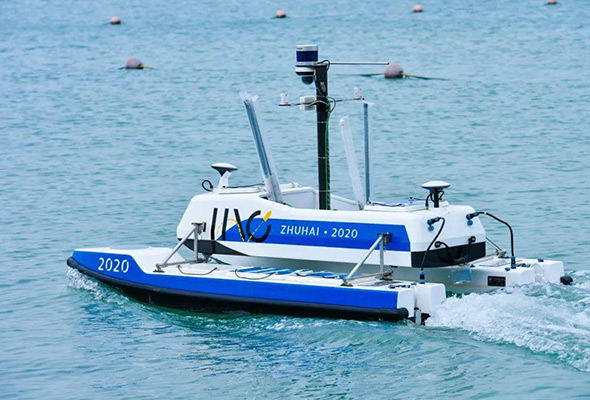

| USV | Robotic Lawn Mower |
 |  |

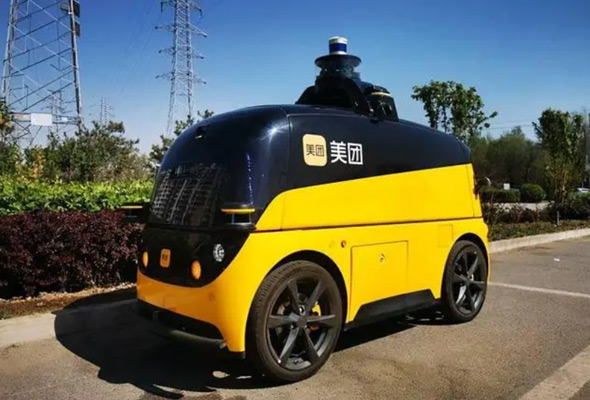

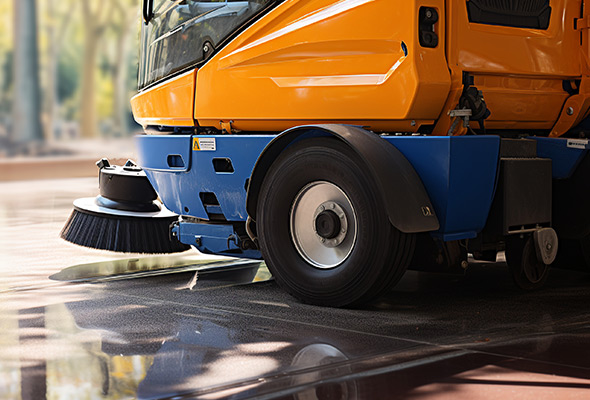

| Unmanned Delivery Vehicle | Unmanned Sweeper |
