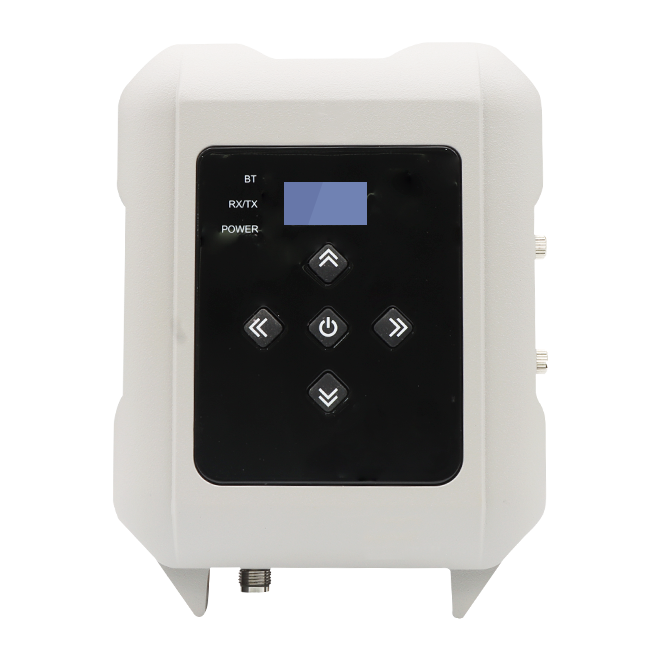

UHF Radio E2

E2 is an external high powerr data transceiver specifically developed for the surveying, mapping, and precision agriculture markets. It features a wide frequency range, compatibility with mainstream data radio protocols, and long communication range. It provides reliable operation with intelligent features such as transparent data transmission, configuration and reading of radio parameters, and online upgrades, meeting the needs for data transmission and interoperability in various application scenarios.
BUY NOW
Details

Key Features

  • Supports 410-470 MHz frequency range

  • Compatible with mainstream radio protocols

  • Long communication range with 35W maximum transmit power

  • Smart start-up and serial baud rate identification

  • IP67 rugged protection

  • CE certified

Specifications

General Specification

Frequency

410-470MHz

Operating Mode

Transceiver/ Transmitter/ Radio Repeater

Channel Spacing

12.5KHz/25KHz

Modulation

GMSK/4FSK

ChannelsUp to 200 programmable channels (configurable)
Supply Voltage9~16V
Power Consumption (Typical)Transmit Output Power H: [35W] 85W@12V DC
Transmit Output Power M: (22W) 60W@12V DC
Transmit Output Power L: (5W) 35W@12V DC
Sleep State 2W@12V DC
Frequency Stability<±1ppm
Dimensions

175*130*86.5mm
Weight

≈2kg

Antenna Interface IPEX
Antenna Impedance 50ohm
Data Interface 80Pin SMT
Air Baud Rate9600bps/19200bps
Serial Port Rate9600 bps/19200 bps/38400 bps/115200bps
Radio Compatibility Trimtalk450、Trimmark3、Transparent EOT, Satel, etc.
RF Output Power (410-470MHz)

High Power (1.5W):31.0-33.0dBm@DC 3.6V

Low Power (0.5W):26.0-28.5dBm@DC 3.6V

Power Stability≤±1dB
Adjacent Channel Power>50dB@25KHz
Sensitivity≥-115dBm@BER 10-3,9600bps
Co-Channel Rejection>-12dB
Operating Temperature -40~+70℃
Storage Temperature -50~+85℃


Application


Surveying and MappingRobotic Lawn Mower
Precision AgricultureCommunication in Uninhabited Areas
