Compliant with LoRaWAN Specification 1.0.3 standard
Uplink supports up to 16 parallel Multi-SF LoRa channels (SF7~SF12)
Maximum transmit power up to 27dBm
Receiving sensitivity up to -139dBm
Supports 802.11b/g/n wireless protocol, up to 300Mbps
Support Ethernet PoE power supply
Includes GPS positioning and PPS function output
Supports the latest OpenWRT kernel
Feature | Specifications |
Processor | MT7628，DDR2 RAM 128 MB |
WiFi Characteristics | Frequency: 2.4 GHz (802.11b/g/n) |
RX Sensitivity: -95 dBm (Min) | |
TX Power: 20 dBm (Max) | |
| Operating Channel: 1~13 | |
LoRa Features | Chip: Semtech sx1302+2 X sx1250 |
Number of Channels: 8/16 | |
| Receiving Sensitivity: -139dBm @125KHz/SF12 | |
| TX Power: 27 dBm (Max) | |
| Frequency: EU433/CN470/EU868/US915/AS923/AU915/IN865/ KR920/RU864 | |
| Cellular Features | Support Quectel EC25-E/EC25-AFXD/EC200M-CN |
| EC25-E for Europe, South Korea, Thailand and India -LTE FDD: B1/B3/B5/B7/B8/B20 -WCDMA: B1/B5/B8 -GSM/EDGE: B3/B8 | |
EC25-AFXD is suitable for North America -LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 -WCDMA: B2/B4/B5 | |
EC200M-CN for China -LTE-FDD: B1/B3/B5/B8-LTE -LTE-TDD: B34/B38/B39/B40/B41 | |
| Power Supply | 12V DC |
| PoE (IEEE 802.3 af), 40~57 V DC | |
| Ethernet | RJ45 (10M/100M) |
| LoRaWAN Working Mode | Supports Class A/B/C |
| Console Interface | USB Type-C |

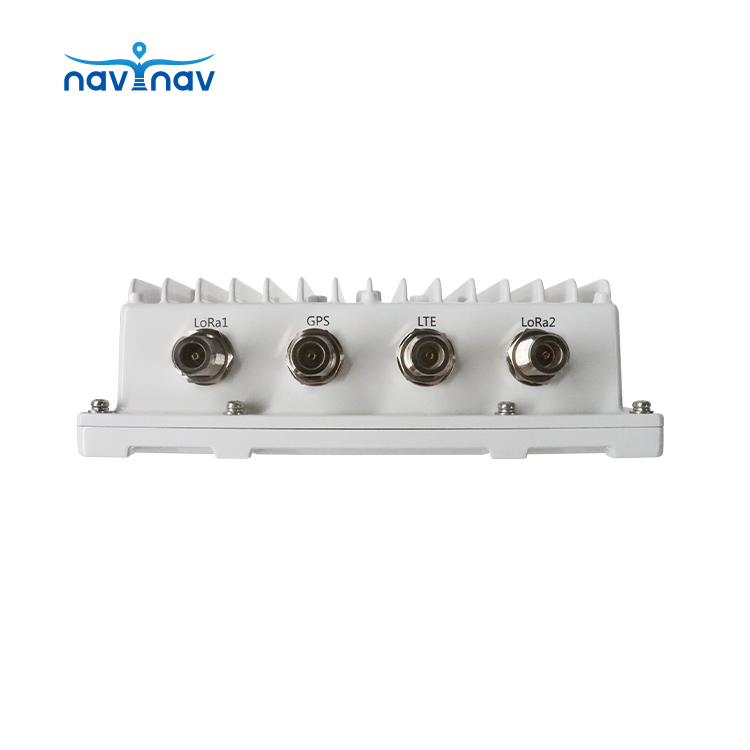

| Antenna Interface | LoRa : N Type Connector |
| LTE：N Type Connector | |
| Wi-Fi：N Type Connector | |
| GPS: N Type Connector | |
| LEDs | Power LED |
| LoRa LED | |
| WLAN LED | |
| LTE LED | |
| ETH LED | |

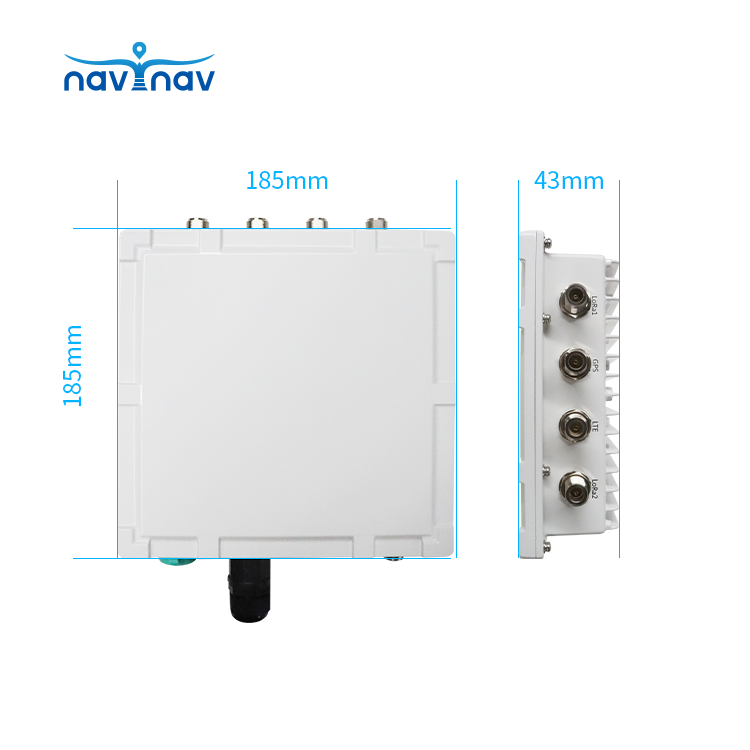

| Dimensions | 185*185.0*43.0mm |
| Material | Plastics |
| Weight | 3kg |
| Ingress Protection | IP67 |
 |  |
| Smart Utilities | Smart Industry |
 |  |
| Smart Agriculture | Asset Tracking |
