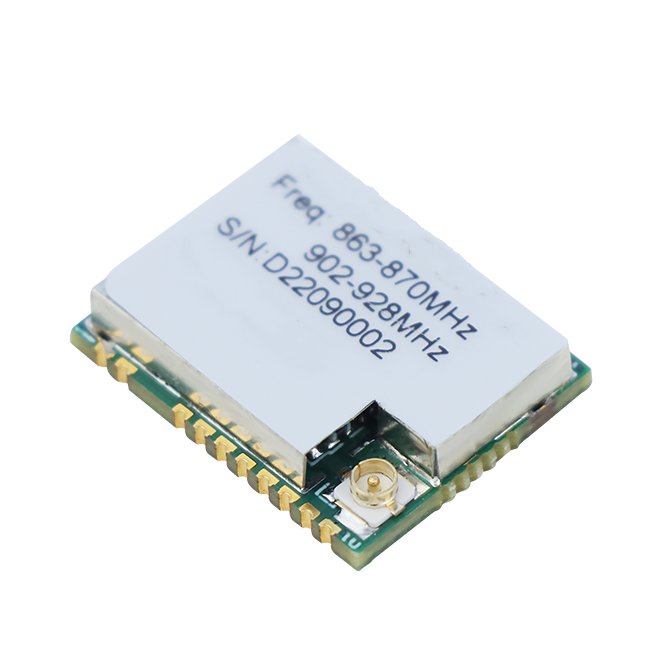

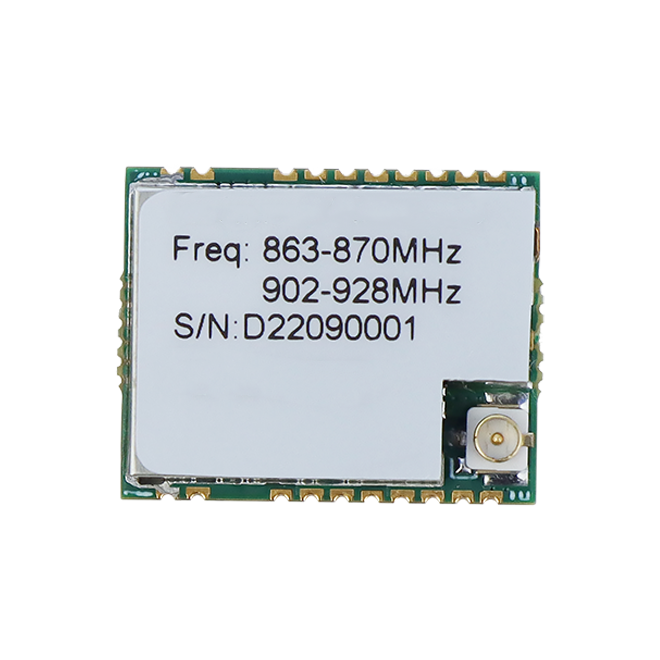

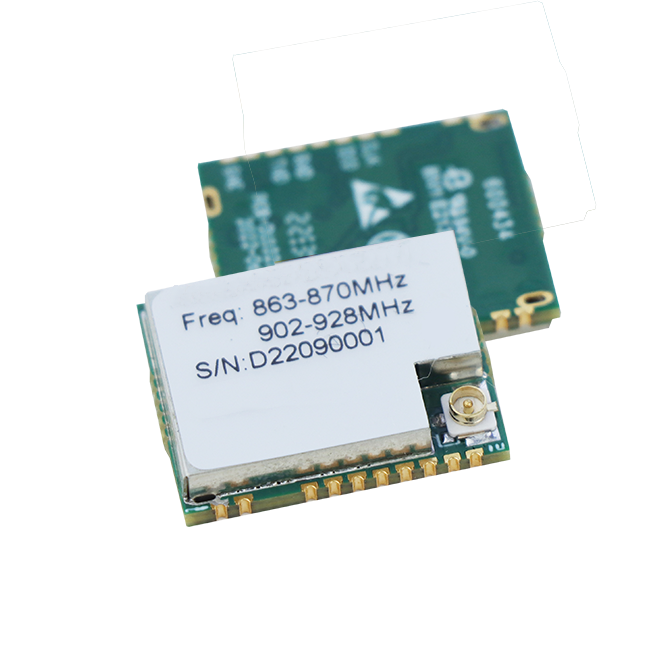

Radio Modem M2

M2 is a compact, integrated radio modem featuring both a transceiver and receiver. It operates on the 868/915MHz ISM frequency band, which is license-free. Designed for seamless integration, this modem boasts a long communication range, exceptional reception quality, robust interference resistance, and low energy consumption. It is specifically engineered to cater to the lawn mower market and various IoT wireless communication needs.
Message
Details

Key Features


Auto-Adaptive Frequency Adjustment

868/915 MHz ISM License-Free Bands

Long Communication Distance


Strong Penetration Capacity

Strong Aniti-Interference Performance

 Complete Certifications

Specifications

General Specification

Frequency range

863-870MHz; 902-928MHz

Operating Mode

Half-duplex

Channel Spacing

250KHz

Modulation Type

CSS

Channels 50
Operation Voltage3.3-5.5V
Power Consumption (Typical)

High power 400mW@3.3V DC

Receiver 50mW@3.3V DC
Modem
Air Baud Rate

9600bps / 19200bps
Serial Port Baud

9600bps / 38400bps / 115200bps

Transmitter

RF Output Power High Power (100mW) 20±1.2dBm@DC3.3V
Low Power (50mW) 17±1.5dBm@DC3.3V
Micro Power (25mW) 14±1.5dBm@DC3.3V
RF Power Stability≤±1dB
Adjacent Channel Power >50dB@25KHz

Receiver

Sensitivity-123dBm@BER 10-5, 19200
Structural Specification
Size17.5 (L)×14 (W)×3.2 (H)mm
Weight About 2g
Antenna InterfaceIPEX
Antenna Interface Impedance50ohm
Data Interface20Pin SMT


Application


USVRobotic Lawn Mower
Unmanned Delivery VehicleUnmanned Sweeper
